Complete 1133mm Clark-y airfoil wing (similar to 3dlabprint) by tfrancis
by Thingiverse
Last crawled date: 4 years, 4 months ago
NEW Complete Aircraft https://www.thingiverse.com/thing:2337232
Updated version of this wing http://www.thingiverse.com/thing:2078106
Complete Clark-y airfoil wing for simple high wing trainer

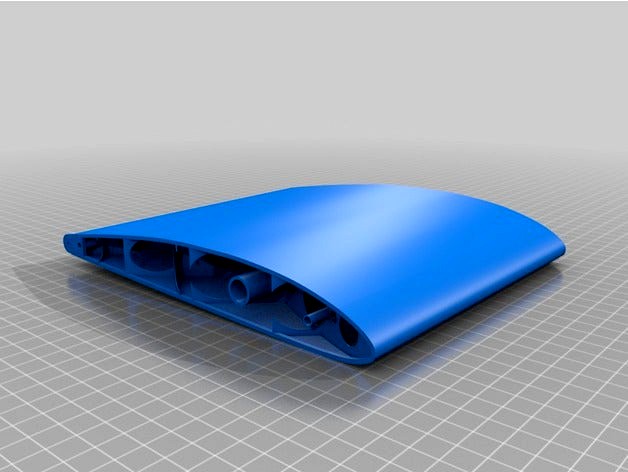

This is my idea for a wing similar to the ones designed by 3dlabprint. Eventually this will be the wing for an 1133mm span (1050mm + 80mm center + 3mm for tips) 200mm chord + 35mm ailerons, "ugly" stick that will be mostly 3d printed, the fuselage is designed and after some test prints I will post it as well.
Servo mounts and control horns have not been added yet these are still test files, I will post updates as they are available.
This wing prints differently than most others I have seen, in slic3r I set it to print at 100% infill, one perimeter, no top or bottom layers & no supports. These settings seem to work well with a .35mm tip on my prusa I3 with PLA.
I have NOT printed the complete wing as of yet, only tests.
I have uploaded my original 123d design files and a complete set of .stl files. For design information and a test section please see http://www.thingiverse.com/thing:1994231
Printing instructioins for the wing tips and the ailerons :
wing tips are just flat plates
ailerons print with either 1 or 2 perimeters & 20% honeycomb infill
Software used for this design, 123d Design & Inkscape.
Updated version of this wing http://www.thingiverse.com/thing:2078106
Complete Clark-y airfoil wing for simple high wing trainer
This is my idea for a wing similar to the ones designed by 3dlabprint. Eventually this will be the wing for an 1133mm span (1050mm + 80mm center + 3mm for tips) 200mm chord + 35mm ailerons, "ugly" stick that will be mostly 3d printed, the fuselage is designed and after some test prints I will post it as well.
Servo mounts and control horns have not been added yet these are still test files, I will post updates as they are available.
This wing prints differently than most others I have seen, in slic3r I set it to print at 100% infill, one perimeter, no top or bottom layers & no supports. These settings seem to work well with a .35mm tip on my prusa I3 with PLA.
I have NOT printed the complete wing as of yet, only tests.
I have uploaded my original 123d design files and a complete set of .stl files. For design information and a test section please see http://www.thingiverse.com/thing:1994231
Printing instructioins for the wing tips and the ailerons :
wing tips are just flat plates
ailerons print with either 1 or 2 perimeters & 20% honeycomb infill
Software used for this design, 123d Design & Inkscape.
