Compact MendelMax Y-Rod Holders by jmil
by Thingiverse
Last crawled date: 4 years, 7 months ago

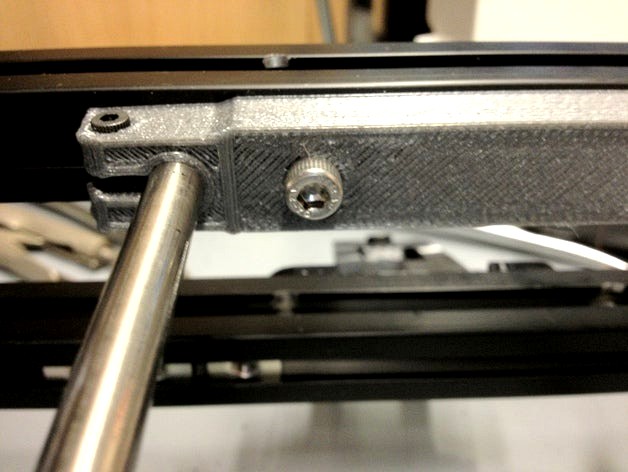

MendelMax and Aluminum Extrusions are awesome to work with. This Y-rod holder is inspired by the ziptie-less LM8UU holders by Jonas Kuehling while also being compatible with MendelMax.
MendelMax v1 had Y-rod holders that spanned two extrusions. v1.5 has a lasercut piece to attach to the center of one extrusion. I like this design but I wanted more play in the length of y-rods that could be used (so I could recycle some from previous bots) and also I wanted a 3D printable version because I can't use wood in my designs (for bioengineering stuff).
Designed in Blender because my OpenSCAD-fu is not very good. .blend file is attached.
MendelMax v1 had Y-rod holders that spanned two extrusions. v1.5 has a lasercut piece to attach to the center of one extrusion. I like this design but I wanted more play in the length of y-rods that could be used (so I could recycle some from previous bots) and also I wanted a 3D printable version because I can't use wood in my designs (for bioengineering stuff).
Designed in Blender because my OpenSCAD-fu is not very good. .blend file is attached.
