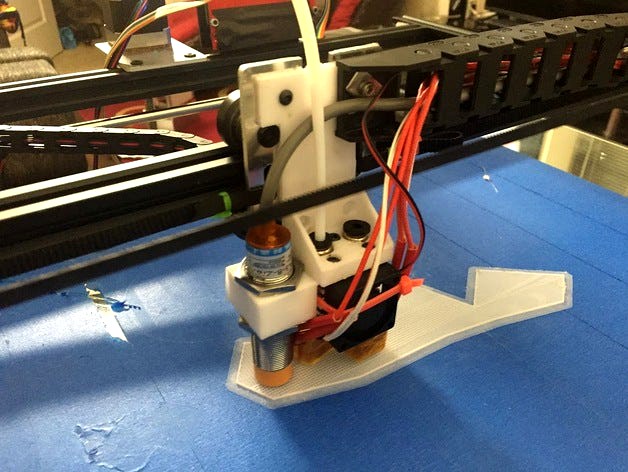

This is a mount for the Chimera for the Cobblebot standard mount plate. You need to turn the plate vertically (which works better for the wheels and bearings that are used).
It includes a holder for an 18mm induction sensor.
You need to use 4 x 20mm M3 screws and 4x 20mm M3 lock nuts to install the plate to the mount.
You also need 3 x 16mm M3 screws to install the Chimera to the mount.
