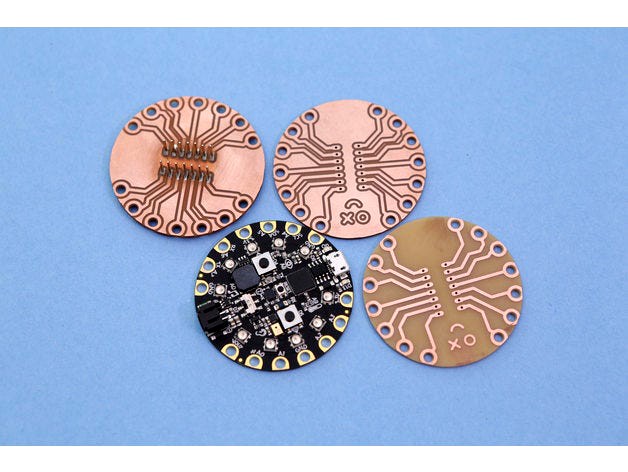

Circuit Playground Express PCB for Breadboarding by adafruit
by Thingiverse
Last crawled date: 4 years, 7 months ago
https://www.youtube.com/watch?v=tSyPFko68Z8
In this project, we'll make a breadboard adapter for the Adafruit Circuit Playground. In the video and guide we'll take a look at the process of milling double-sided PCBs using the Bantam Tools Desktop CNC Milling Machine.
Full learn guide:https://learn.adafruit.com/double-sided-pcb-milling
Circuit playground express is a great board with lots of sensors and components. There’s lots of example projects, libraries and code on the Adafruit learning system.
There’s certain projects where you need to connect other components like motors and servos. Using alligator clips is a nice solder-free way to connect things but not always the most robust.
Fabricating a custom PCB adapter with standard 0.1" headers is a great way to attach jumper cables and other connectors Circuit Playground Express.
