CF Stick Quad V2 by Leesamn
by Thingiverse
Last crawled date: 4 years, 8 months ago
With the new 2S tinyPEPPER 4 in 1 ESC being released i was able to slim down the CF Stick quad a bit. With a 2S airbladeuav 450mah battery AUW is just over 61g.

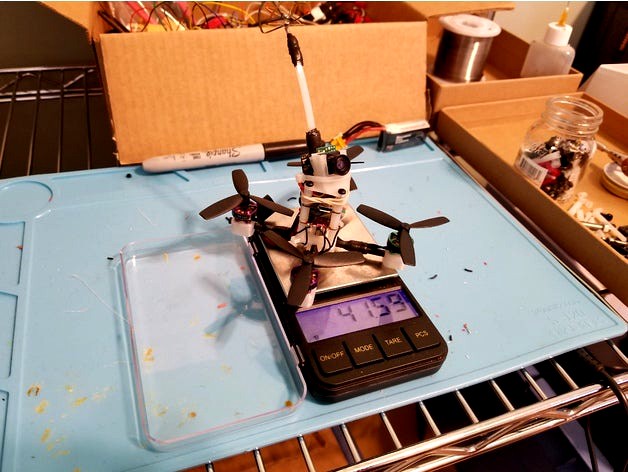

The picture shows it assembled but a bit tall, i need shorter standoffs or spacers to squish the stack, and the VTX antenna is way too long.
This rebuild of the CF Stick Quad also has a different camera/vtx. The VTX is an Eachine VTX03 running on a pololu 5v regulator paired with a generic 600tvl cmos camera i had on the bench angled at 30 degrees.
Check out the flight video
Update Sept 14th 2017:
I edited the motor mounts so they're take the 1103's which have both the 8.5mm and 9mm bolt pattern. I also strengthened the camera mount after completely destroying the original in a crash.
