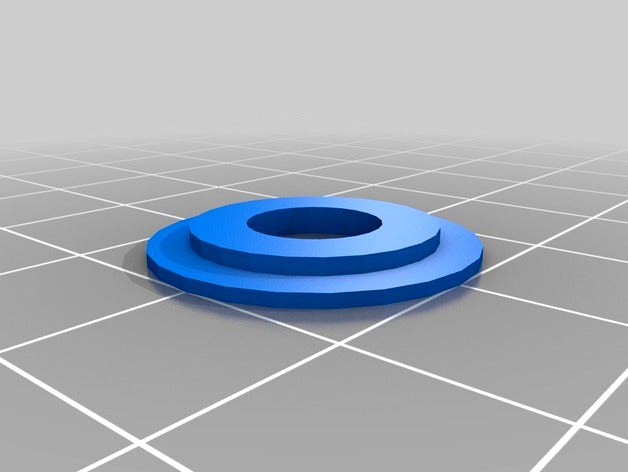

CD optical encoder project by NilsR
by Thingiverse
Last crawled date: 4 years, 7 months ago
Work-in-progress project to use a CD as an optical encoder for experiments. I'm writing some code for an AVR-based project to count up and down, depending on which way one spins the CD.
All parts designed in SketchUp.
These parts are fine-tuned for my Kossel printer, so they might not fit exactly.
To do:
Test assemble
Make a base
Make an LED/Photo transistor holder
Make pattern for CD
Kudos to HomoFaciens for inspirationhttps://www.youtube.com/channel/UCDq5T5K8dd9qL6fKBtBMXoQ
