Hello
I decided put this project together, because detail pictures are missing.
Resources:https://www.thingiverse.com/thing:50110https://www.thingiverse.com/thing:638685
Im not designer, im just putting things together.
i drilled 13mm hole BodyLower (original is 12mm) to fit 624-2Z bearing, which i had on hand.
On picture 8 are wires on wrong position. corrected on pic. 15.
I will design new part to remove washers between WasherSpacer and bearring on BodyLower
Print Bom:
Arm0a 1Pcs
Arm0b 1Pcs
Arm1 1Pcs
ArmConnector 1Pcs
Gear Big 1Pcs
Gear small 1Pcs
Power wheel 2Pcs
counterwheel 4Pcs
Track Middlewheels 10Pcs
Auslager 1Pcs
Body Lower 1Pcs
Body Upper 1Pcs
Cabin 1Pcs
Kleinetiele 1Pcs
Pwrwhlstabi 4Pcs
tablelower 1Pcs
Trackbox left 1Pcs
Trackbox right 1Pcs
Tracks 10Pcs
Track Tightener 1Pcs
TrkMdlPart 1Pcs
WasherSpacer 1Pcs
Wheel 1 30Pcs
WireHolder 1Pcs
Grill 1Pcs
Turret Spacer 1Pcs
Redesigned parts:
Counterwheel V01 4Pcs

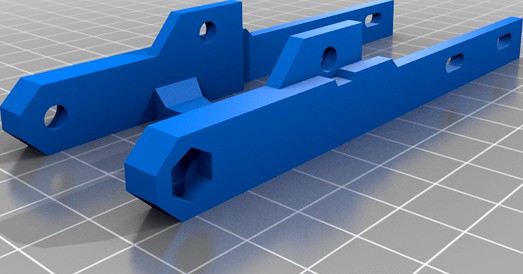

TrackTightener Right V01 1Pcs
TrackTightener Left V01 1Pcs
PwrWhlStabi V01 2Pcs
trackMiddleWheels with 624 bearing 10Pcs
or
trackMiddleWheels no bearing 10Pcs
Material:
Servo OKY8005 OKYSTAR 1Pcs (turret)
Servo MG996R 5Pcs (arm and tracks)
Modul NRF24L01 2Pcs
Arduino Nano 2Pcs
Bearing 624-2Z 2Pcs BodyLower
Brass washer 18x12x1,5mm
M3x12 1Pcs
M3 Self locking nut 1Pcs
M4x12 2Pcs -TrkMdlPart
M4x20 4Pcs - Turrtet servo
M4x10 2Pcs - BodyLower servo
M4x60 1Pcs - Body lower to suspention
M4 Nut 9Pcs
M4 Washer diameter 8mm 9Pcs
M4 Washer diameter 15mm 5Pcs
