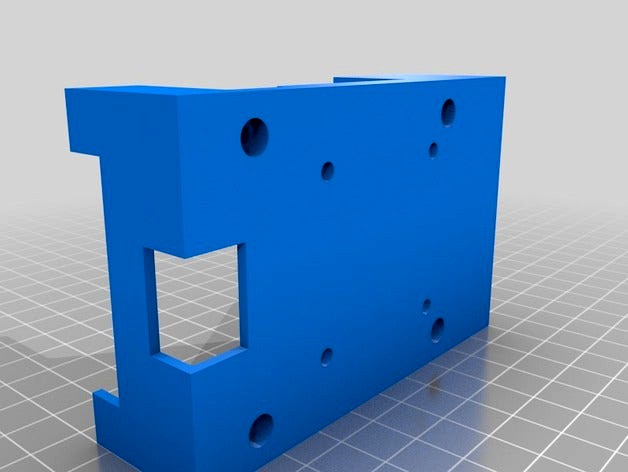

This is not fancy, but it is a workable case for a Raspberry pi 3 + NAVIO 2 board.
For mounting, you can either use the 50mm X 58mm hole pattern of the Raspberry, or the 35mm X 35mm pattern on the `bottom of the box. I left enough opening for adequate airflow.
Use M2.5 X 10mm screws to hold the boards in place. The holes in the bottom have a nut pattern for M3 nuts.
I left a hole for access to the memory card.
Make certain that you also download the cover for this box.
