Case for Intel Edison Arduino Expander Board by majassow
by Thingiverse
Last crawled date: 4 years, 7 months ago

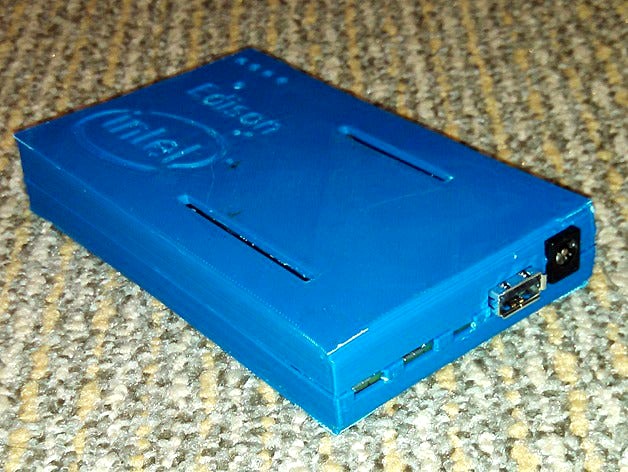

This is a case for the Intel Edison with the Arduino Expander Board. The slots allow access to Arduino shields. All edge I/O are accessible.
I've included guides for control of the 5 on-board switches using separately printed switch extenders (I'll add the STL once I get the geometries optimized). Also included are holes intended for light-pipes for on-board LED's using a material like T-Glase or some other transparent/translucent material (STL in progress).
Update: I've uploaded the switch extensions. These allow you to operate all 5 board switches.
I've included guides for control of the 5 on-board switches using separately printed switch extenders (I'll add the STL once I get the geometries optimized). Also included are holes intended for light-pipes for on-board LED's using a material like T-Glase or some other transparent/translucent material (STL in progress).
Update: I've uploaded the switch extensions. These allow you to operate all 5 board switches.
