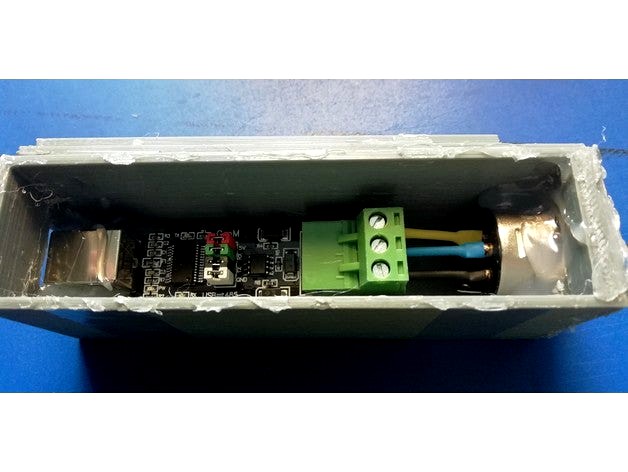

Case for DMX Interface with USB to RS485 TTL Serial Adapter by JuliTec

Last crawled date: 4 years, 7 months ago

I designed a case for my DIY DMX interface. The interface I built myself according to the instructions of Steven Breuls. The interface self-construction is significantly more cost-effective than buying finished products from ENTTEC or MyDMX.
Tipps:
Create a new Network-Adapter
Use ArtNet to DMX (comes with FreeStyler)
Steven’s instructions: https://diyprojects.tech/2013/05/diy-usb-dmx-dongle-interface-for-under-10/
The Board:

Buy from Germany: https://www.ebay.de/itm/203324796490?chn=ps&norover=1&mkevt=1&mkrid=707-134425-41852-0&mkcid=2&itemid=203324796490&targetid=885285326120&device=c&mktype=pla&googleloc=9042972&poi=&campaignid=10215338080&mkgroupid=105782584207&rlsatarget=pla-885285326120&abcId=1103836&merchantid=138406271&gclid=Cj0KCQjw9_mDBhCGARIsAN3PaFNRVTcEbpGxLKiFhYvLnPIU109eaMN-DOPiJM1AhlO-KSwqE1C5dOUaAn48EALw_wcB

Buy from USA: https://www.ebay.com/itm/200969195861?_trksid=p2060353.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT
Problems?
-> https://diyprojects.tech/2014/06/ft_prog-fix-your-ftdi-rs485-dmx-interface/
-> https://diyprojects.tech/2014/04/dmx-rs485-wrong-board-fix/
