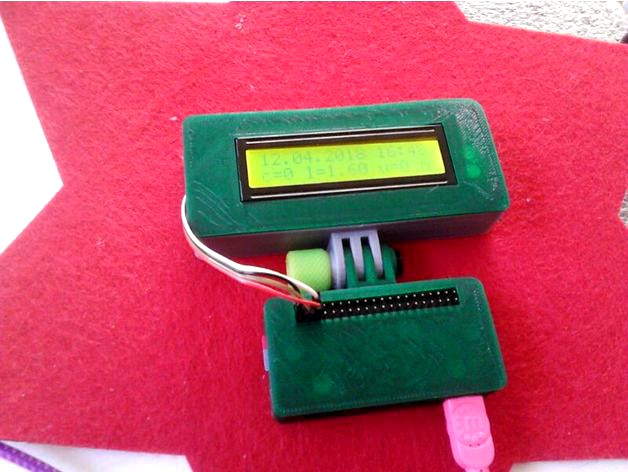

Case for 2x16 LCD Display with mounts by endif
by Thingiverse
Last crawled date: 4 years, 12 months ago
This is a case for a 16x2 LCD display board. The case is high enough so a SPI interface board also fits.
As an option there is a big hole on one side so you can install a "Mini-DIN" connector plug. (File:display-gehaeuse-Unterteil-DIN.stl). This is how I connect the display SPI wires and 5V.
Another version of the case has a GoPro-Mount (flexmount).(File:display-gehaeuse-Unterteil-DIN-flexmount.stl)
If you do not like to use screws to fix the display board, you can try to use the 4 little screw-dummies (nupsies.stl). With a little pressure (or some glue) this will also work.
ATTENTION: Version 2 of the case has a different size.
I have printed some of these cases for my use. Maybe there are possiblilities for optimization. If you have ideas, please let me know.
