Capacitive Sensor Prusa i3 Hephestos by zimzf23
by Thingiverse
Last crawled date: 4 years, 1 month ago

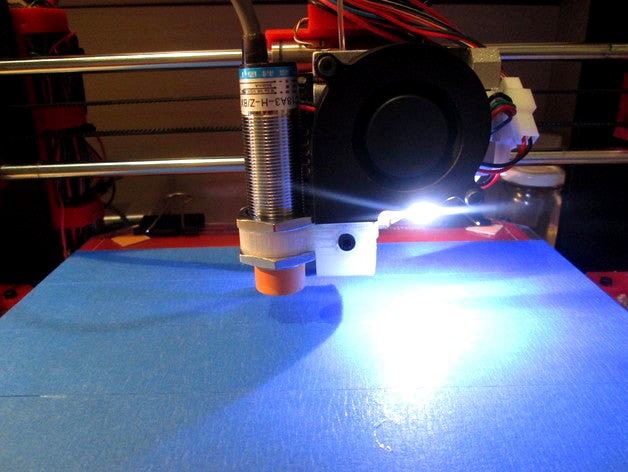

Capacitive sensor mount designed for Prusa i3 Hephestos.
Might work with other prusa i3, but only tested with hephestos.
Should be printed in ABS because of the extruder temperature, but i printed it in PLA nad also works fine (i guess because the air flow keeps it cool).
Tested with a chinesse 8$ capacitive sensor, that has 12V input and 6v output, so it doesn't need voltage divider, and the hole is ~20mm aprox. If it is a bit loose, the sensor can be tighted up with the nuts and washers it comes with.
If you have any questions or doubts about adding a capacitive sensor to a prusa i3 with Ramps 1.4 and Marlin, you are free to ask. ( you can also email me at zimzf23@gmail.com)
Unluckly Meshlab messed with the measures and converted it from milimeters to inches... needs to be scaled or exported a new .stl from the .dae or .skp (If using Simplify3D, it auto scales it)
