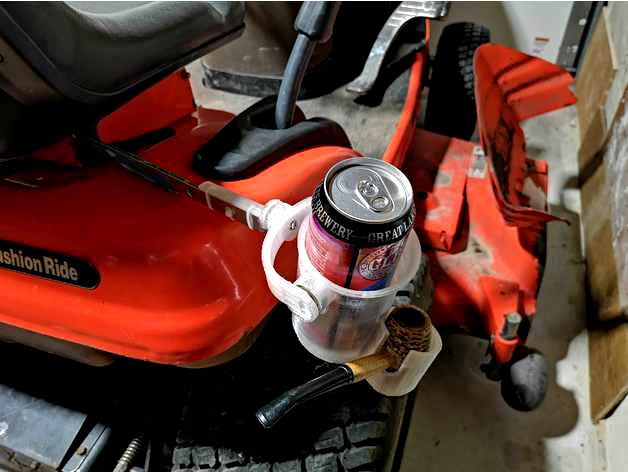

Can or Bottle and Tobacco Pipe Lawn Tractor Gimbal (passive stabilization) by gexgecko
by Thingiverse
Last crawled date: 4 years ago
This was inspired by the "Gumbal" (https://www.thingiverse.com/thing:3124658).
However, I did not set this as a 'remix' since no parts are re-used.
Specifically, I wanted to:
improve the ease of assembly/printing
reduce tolerance sensitivity
improve the joint strength for the roll joint (now uses a 25mm M5 bolt through the bearing)
Add a pipe stand (Use caution when smoking a tobacco pipe while driving on things which run on gas/diesel!)
This needs
x1 25mm M5 bolt with hex nut
x3 608-ZZ bearings
L bracket for zip tie coupler -> mount point joint (same stuff people use to put their garage door openers up with)
3 zip ties to mount the zip tie coupler to the L bracket
Alternately, you could change up the mounting after the roll joint to use something other than the L bracket.
