C Clamp and driver
by Thingiverse
Last crawled date: 6 years, 1 month ago

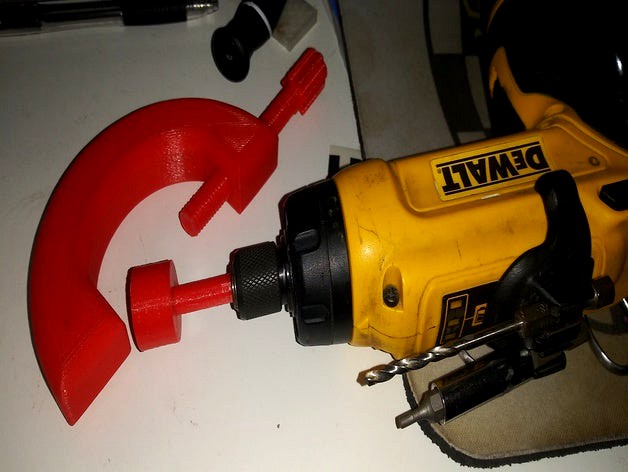

The Screw is short on purpose as I can make bigger caps. The screw was real tight so this morning I made a driver so I could use my screw gun to feed it in and out to loosen it up. The driver required a bit of sanding to get it to fit and the driver doesn't fit the screw as I had hoped (very tight) but it gets enough to drive it in and out. Broke the Screw so printed a new one 50% infill gyroid and added the timelapse.
10/19/2019 1315 Added 29mm cap and a hex driver as I don't like to put things I print in my screw gun for fear of it breaking off inside.
10/19 1335 Added Hex screw to use for wearing out the threads to the caps
10/19 1410 Added an extension and a hex extension end. My printer can only do 120mm tall so I have to get creative.
10/19 1400 added a 10mm cap with hex base over the threads, as I Make more I will be using hex over thread from now on. I will upload them as I go.
The original driver I printed with the hex shaft up with supports on the inside @15%. The Hex Driver I will print with the hex down and no supports.
Time Lapsehttps://youtu.be/bylcTS9BTOUhttps://youtu.be/lHAeERUPoQEhttps://youtu.be/hMt-Adea-Yc
