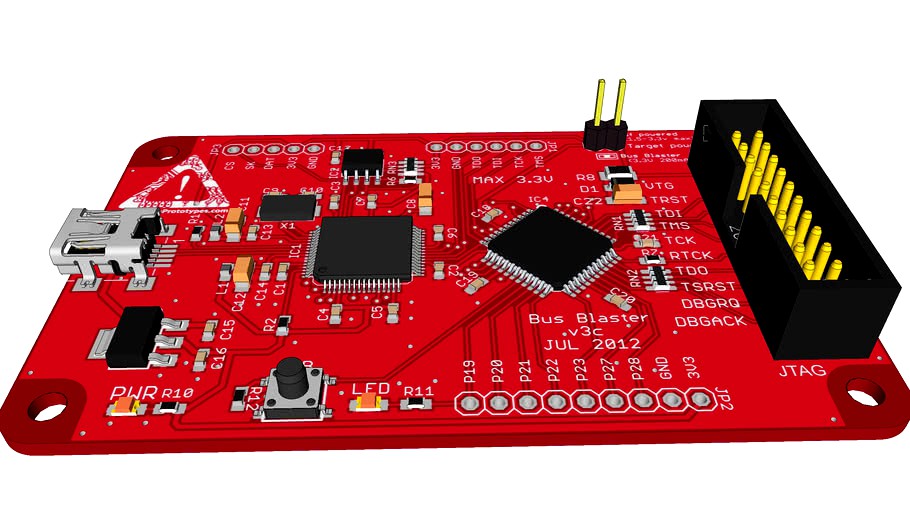

Bus Blaster v3a

Last crawled date: 3 years, 6 months ago

Bus Blaster is an experimental, high-speed JTAG debugger for ARM processors, FPGAs, CPLDs, flash, and more. Thanks to a reprogrammable buffer, a simple USB update makes Bus Blaster v2 compatible with many different JTAG debugger types in the most popular open source software. Based on FT2232H with high-speed USB 2.0 Buffered interface works with 3.3volt to 1.2volt targets Reprogrammable buffer is compatible with multiple debugger types Compatible with 'jtagkey', 'KT-link' programmer settings in OpenOCD, urJTAG, and more Should support Serial Wire Debug when available Mini-CPLD development board: self programmable, extra CPLD pins to header Open source (CC-BY-SA) #Blaster #Bus #Dangerous #Electronics #Prototypes
