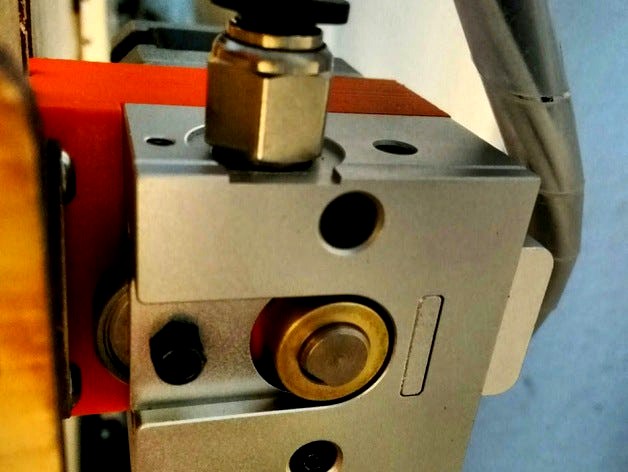

BulldogXL Extruder Mount for Ultimaker Original by MakerSpatz
by Thingiverse
Last crawled date: 4 years, 7 months ago
Bulldog XL Extruder UMO Mount for replacement.
The wiring is:
UMO -> BulldogXL
Black -> Red
Green -> Brown
Blue -> Blue
Red -> Yellow
Check the functionality of the feeder at first. If it works in the opposite direction, swap blue and yellow.
