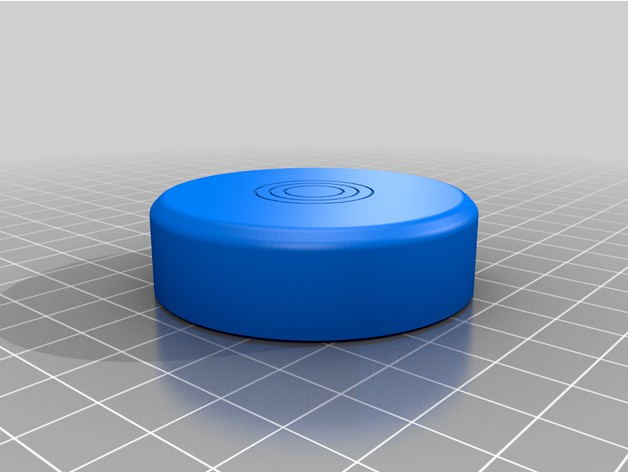

Bubble Level by smgb
by Thingiverse
Last crawled date: 5 years ago
!!! This component was never 3D printed before !!!
Probably this was never tried before, 3D printed spirit level, this is only for *SLA printers, inside of this thing there is a 200mm radius, 40~ layers at 0.05mm per layer, it’s sensitivity is of 0.573º, 2mm of bubble movement equal 10mm/m (around 3/8” per 3’-1/4”). The body of the vial need to be printed with a transparent resin, for the fluid tap water can be used for a try, usually inside vials there is alcohol, spirit, ethanol or any else liquid with a low viscosity and a low surface tension.
!!! Do not direct expose to the Sun or any other heat source, it may explode !!!
If you found this component useful you can support my work using the link in the Bio.
Thanks of use it
Simon
