Brackets for led matrix by flaviof
by Thingiverse
Last crawled date: 4 years, 7 months ago

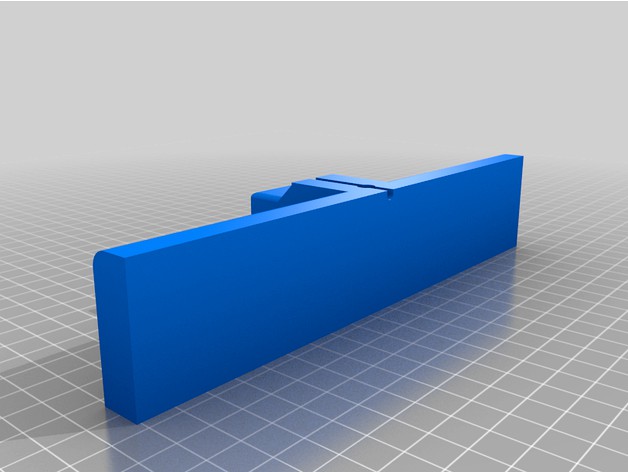

This bracket fits the 64x32 RGB LED Matrix - 6mm pitch from Adafruit.
I am using this display with an Adafruit Matrix Portal,
but wanted to move the
board further inside and needed a harness to hold it while connecting
it to the HUB 75 plug using jumper wires.
Adafruit Matrix Portal - CircuitPython Powered Internet Display
I will be hanging it on the wall to replace my existing kitchen clock.
8 x M3 10mm screws are required to connect the brackets to the display.
In order to protect and diffuse the LEDs, I ordered the
Black LED Diffusion Acrylic Panel from tapplastics.com
Dimensions: 385mm x 190mm x 13mm / 15.2” x 7.5” x 0.5”
I used simple black electric tape to secure the acrylic to the front face.
The OnShape project used to generate these STLs is available here.
I am using this display with an Adafruit Matrix Portal,
but wanted to move the
board further inside and needed a harness to hold it while connecting
it to the HUB 75 plug using jumper wires.
Adafruit Matrix Portal - CircuitPython Powered Internet Display
I will be hanging it on the wall to replace my existing kitchen clock.
8 x M3 10mm screws are required to connect the brackets to the display.
In order to protect and diffuse the LEDs, I ordered the
Black LED Diffusion Acrylic Panel from tapplastics.com
Dimensions: 385mm x 190mm x 13mm / 15.2” x 7.5” x 0.5”
I used simple black electric tape to secure the acrylic to the front face.
The OnShape project used to generate these STLs is available here.
