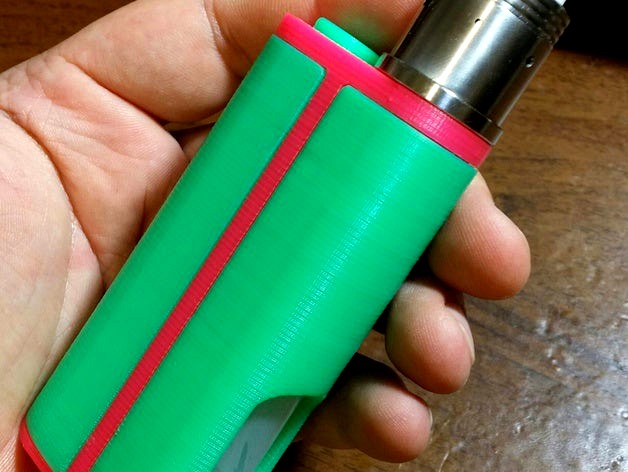

A simple box mod bottom feeder ofr mechanic lovers.
It mount a 18650 battery and 6 ml classic round bottle.
Size are: 90x46x24.
What do u need to assembly ?
all the printer parts;
for the push button:
a M3 bolt long 15 <> 17 mm;
a spring;
a M3 nut;
a round faston
6 ml round bottle;
a drip cap (there 3 different hole body version)
16 magnets 3x1 mm
In one shot u can see the push button mount sequence.
A short video (IT):https://www.youtube.com/watch?v=edhSnSAVne0
Update 14/09/2015
Added a body version with hole for fatdaddy drip cap.
