Box for Meteostation (SDS011, BME280) by 2lvr2

Last crawled date: 4 years, 7 months ago

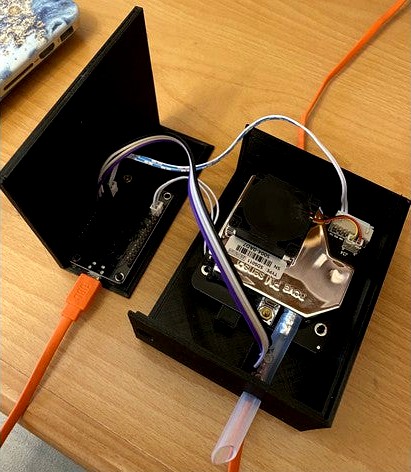

This is 3D printered box for meteostation that use ESP8266 as a processor and SDS011, BME280 sensors.
Such modification of meteostation I have seen on the webpage of breathe.moscow project. On their webpage (https://breathe.moscow/) they have detailed instruction how to assemble it, how to upload firmware in it and connect to Sensor community project (https://sensor.community/). All their instructions are on Russian. They use general electric box to assamble the station, so I decide to make my own desing of this box.
This station show such data:
PM2.5
PM10
Temperature
Rel. humidity
Pressure
BOM
ESP8266
SDS011 sensor
BME280 sensor
6x8 mm silicone tube
some wire to connect all this
cable (USB - microUSB)
Power Supply (5V; 0,5A)
How to connect wire:
ESP8266 ---> SDS011 sensor
VU---------------5V
GND ------------GND
D1----------------TXD
D2----------------RXD
ESP8266 ---> BME280 sensor
3V3 ----------- VCC
GND ---------- GND
D4-------------- SCL
D3 ------------- SDA
Firmware
Here is the link to upload firmware for this station https://github.com/opendata-stuttgart/airrohr-firmware-flasher/releases
