Boat Transducer mount for Fish finder (Terhi) by Joens
by Thingiverse
Last crawled date: 4 years, 5 months ago

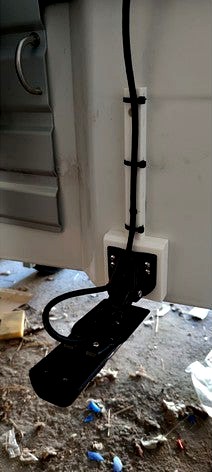

A transducer mount for Terhi 400/445/450/475/6020
Will replace 70062-TER
This wount be a adjustable transducer mount but you will be able to use the original holes for the 70062-TER. So it you want to change to the original adjustable transduder mount you wont need to drill new holes.
The boat is made of ABS, so I will be using the same material. But it might work with PLA also.
Holes for transducer will fit Garmin fish finder transducers with a CC45mm
Needed hardware:
Sensor: 6mm A4 screw. About 20mm long
Mount: 6mm A4 screw. About 30-40mm long
Dont forget to use something sticky to make the hole not to take in water.
Version 2 with more holes for the sensor and some zip-tie holes.
