BMG Direct Drive Adapter for Ender 3 V2 with Hero Me Gen5 by scaryPug
by Thingiverse
Last crawled date: 4 years, 5 months ago
This is a BMG direct drive adapter for Ender 3 V2 with Hero Me Gen5.
Mounting design/orientation inspired by speedDrive v1.
Tested on TriangleLab BMG v2 extruder, designed using official bondtech dummy model, so it might work for Bondtech BMG as well.

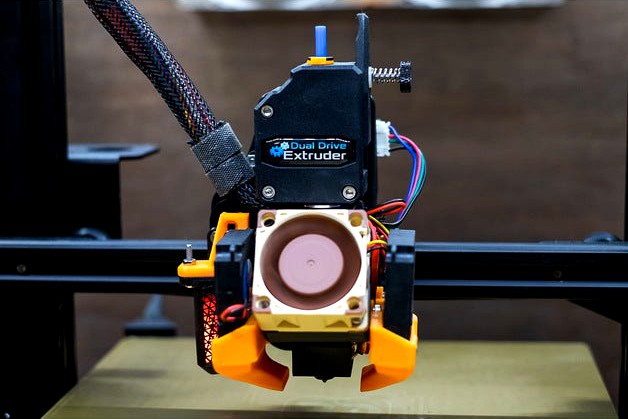

It's better to use pancake stepper motor so the motor won't smash into the frame. I use bondtech 25mm pancake motor and it has 3-4mm of clearance (see image).
If you want to use regular sized stepper motor, please see the speedDrive v1 page for better explanation of how to use the spacer for the endstop.
You also might need to cut the original Hero Me cable management tube to install this.
.step file added for easy tweak.
Mounting design/orientation inspired by speedDrive v1.
Tested on TriangleLab BMG v2 extruder, designed using official bondtech dummy model, so it might work for Bondtech BMG as well.
It's better to use pancake stepper motor so the motor won't smash into the frame. I use bondtech 25mm pancake motor and it has 3-4mm of clearance (see image).
If you want to use regular sized stepper motor, please see the speedDrive v1 page for better explanation of how to use the spacer for the endstop.
You also might need to cut the original Hero Me cable management tube to install this.
.step file added for easy tweak.
