BLV MGN Blind Joint Drilling Guide by psychotik2k3
by Thingiverse
Last crawled date: 4 years, 1 month ago

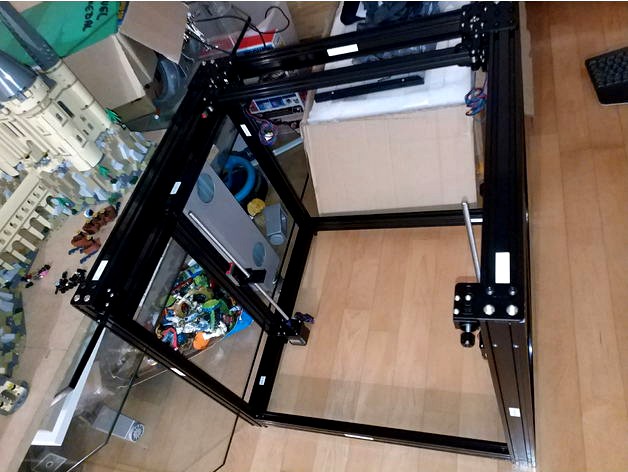

Here is the drilling guide i created and use myself tro made my BLV MGN
you can put M5 screw in the end holes to help fixing it.
The basic kit provided by sealand blurool on ali express got really crappy aluminium corners and if you succed to build the frame without going nuts is an exploit.
On the PDF i put the letters needed to know which hole to use.
drill with 5mm drill bit (that should be enough for the allen key to screw the M6 screw)
and tap ALL profiles (even the pillars if you install the metal kit) with M6 tap.
you can check the pdf if you need more help to visualize which holes where
you can put M5 screw in the end holes to help fixing it.
The basic kit provided by sealand blurool on ali express got really crappy aluminium corners and if you succed to build the frame without going nuts is an exploit.
On the PDF i put the letters needed to know which hole to use.
drill with 5mm drill bit (that should be enough for the allen key to screw the M6 screw)
and tap ALL profiles (even the pillars if you install the metal kit) with M6 tap.
you can check the pdf if you need more help to visualize which holes where
