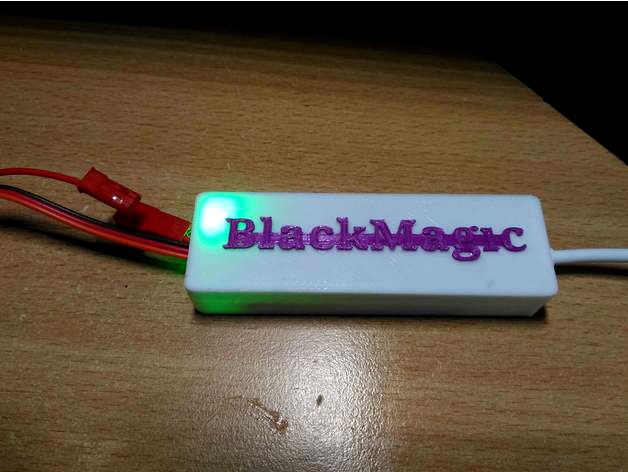

This is a case for STM32 bluepill based BlackMagic
It is a quick job, not very good, dont expect it to be ready to print
It is more a base for someone wanting to do something similar
For example, the top part does not fit too well to the bottom part, i glued it
You'll need to cut some stuff to make the bluepill slimmer
(SWP interface, jumpers, etc...)
Do that AFTER checking it is working
I added a strong green led + 80 Ohm resistor directly on the 3.3 v
It is a good idea to have the external 3.3v on a plug , so that you can unplug it if your board is self powered. Else you risk damaging something.
Edit : Top part redone to be a bit better + uploaded the right bottom file
https://www.tinkercad.com/things/9REiiQcweoH-blackmagic-v2/editv2
