Bitscope & Raspberry Case by Fanlou

Last crawled date: 4 years, 4 months ago

(Printing in progress) More picture later

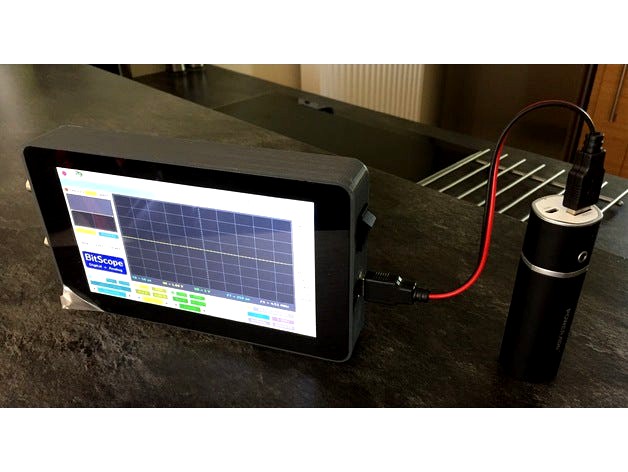

This is a case for my small o'scope, very tiny to stay in backpack. (I am a customer service engineer never in compagny's office.)
What you need :
1 x Raspberry PI Compatible with Biscope probe.
1 x Bitscope BS05U
1 x Bitscope Hammerhead
1 x Official Raspberry 7" touch screen
1 x KCD1-104 power switch
1 x Usb female plug 180°
1 x 8Go SD card
1 x USB battery bank or Usb Supply
4 x M3x20mm
a lot of patience for an 11Hrs print!!
To reduce the volume of this o'scope I turned Upside Down the raspberry PI. (And gently twisted the video ribbon cable.)
Have fun!
FL²
