Bevel Extrude Module for OpenSCAD by GregFrost
by Thingiverse
Last crawled date: 4 years, 6 months ago

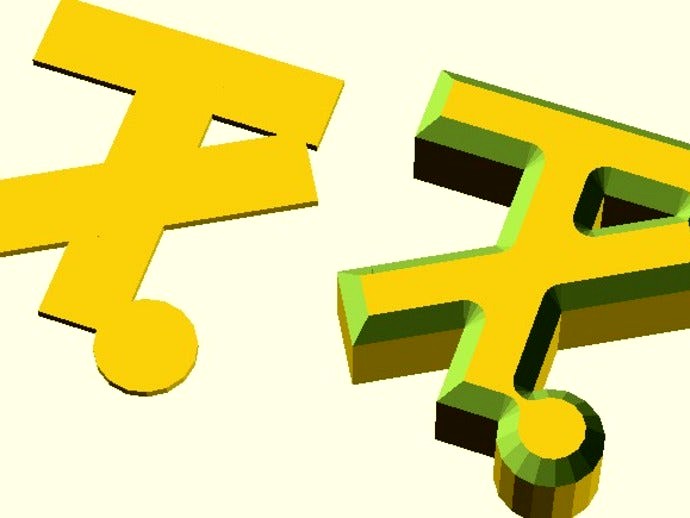

This is a module that uses the OpenSCAD minkowski() function to allow you to extrude an arbitrary 2D shape with a bevelled edge on top.
If you have concave corners, then you may want to specify a number of facets on the curved bevel that is created using the $fn= argument.
It is a bit slow because OpenSCAD's minkowski seems to take a while.
The arguments are:
height (How high the 2d shape is extruded).
bevel_depth (How low the bevel is cut into the top of the extruded object).
$fn = (number of facets on curved bevels of concave corners).
If you have concave corners, then you may want to specify a number of facets on the curved bevel that is created using the $fn= argument.
It is a bit slow because OpenSCAD's minkowski seems to take a while.
The arguments are:
height (How high the 2d shape is extruded).
bevel_depth (How low the bevel is cut into the top of the extruded object).
$fn = (number of facets on curved bevels of concave corners).
