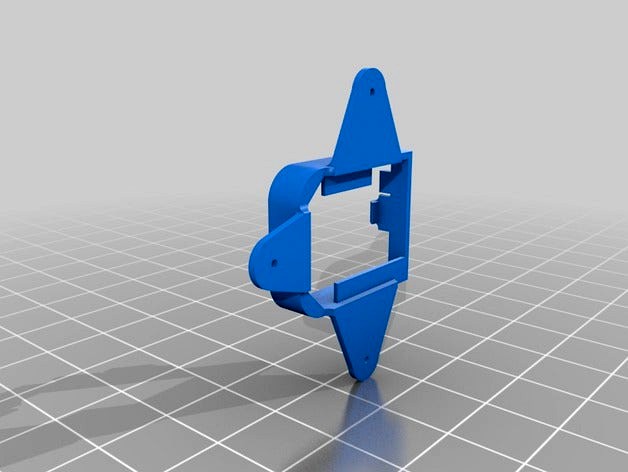

This is a mount for BetaFPV Z1 Camera and VTX system for Beta65/Beta65S tinywhoop-style quadcopters.
There are 2 files - one is a mount for stock Z1 camera-VTX system to put on top of BetaFPV F3 brushed controller. The stock Z1 is when a camera is soldered to VTX with pins/solder pads.
My Z1 didn't last long, and after a dozen of crashes the camera bent, and then separated from the VTX part. The pins and solder pads were ripped off. For this case I designed a second mount - Z1 mount with camera stand. Desolder remainings of metal pins from camera and VTX, then solder small wires (leave some extra, you can trim them later) to camera and VTX pads where pins were, slide camera into the mount. Then solder 5V to 5V wires , GND to GND, and video to video, or to OSD pins on Betafpv flight controller (if you have OSD).
