Betafpv beta95x v2 by pwncity

Last crawled date: 4 years, 3 months ago

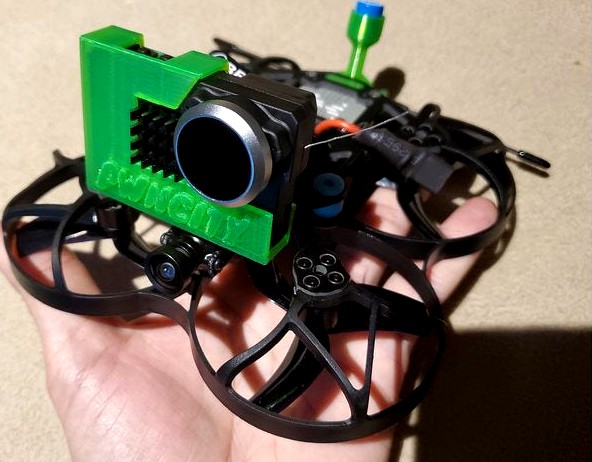

Betafpv beta95x v2 mount set.
Files include are:
2 x Naked gopro mount for the Betafpx naked gopro v2 ABS plastic case (both 15° and
25° versions)
Mount for the digital VTX antenna (the micro sized antenna that comes with the included
caddx setup from Betafpv).
Mount for a crossfire immortal t antenna (specifically the immortal t where the center
plastic body T has barbed shaped ends).
I started on this because there was no immortal T mount, and the included naked gopro mount would not accommodate a heat sink where as the one I designed will allow a heat sinked version to slide in and out easily. Also the included digital VTX antenna mount was not lofted and in my opinion too close to the frame and crossfire antenna. This one puts some distance between the two to help reduce interference. You will need 4 small screws to install the immortal T mount, but I made the holes small because they will stretch to fit various screw diameters. Let me know if there are any changes I can add to make this better and I will try to get around to it in my free time : ).
