Beam Gauge v6 by ImChris

Last crawled date: 4 years, 8 months ago

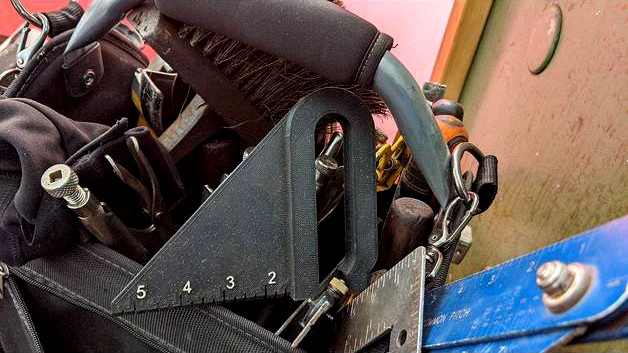

My last design of a beam gauge, used to find on web center of a beam flange. I designed and printed a number of these 2 years ago. They are being used in an Industrial Structural Steel shop. Printed in PLA and still going strong. Treat it like you would other measuring tools and it should last.
This gauge will work on beams with a flange thickness up to 3/4 inch and a width of 9 inches (4 1/2 inch per side)
