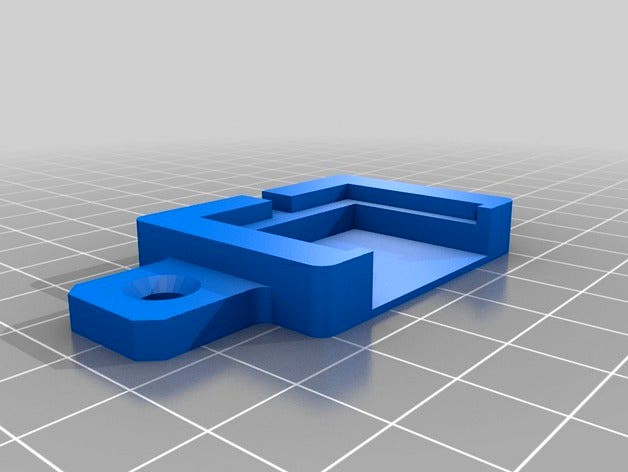

Bathroom scale strain gauge bracket by jmogyoro

Last crawled date: 4 years, 7 months ago

Inspired by "Load cell bracket" by b2vn. The project is to re-purpose a bathroom scale to make it much larger in order to weigh someone seated (on a chair). Application for a handicapped person who can not stand. Or you could use it to weigh your dog, etc. I took apart a Homedics bathroom scale and make this little bracket to house the 4 strain gauges. They can then be mounted on a platform of appropriate size. The size of the original design did not match my strain gauges so I redesigned slightly. Thank you b2vn!
