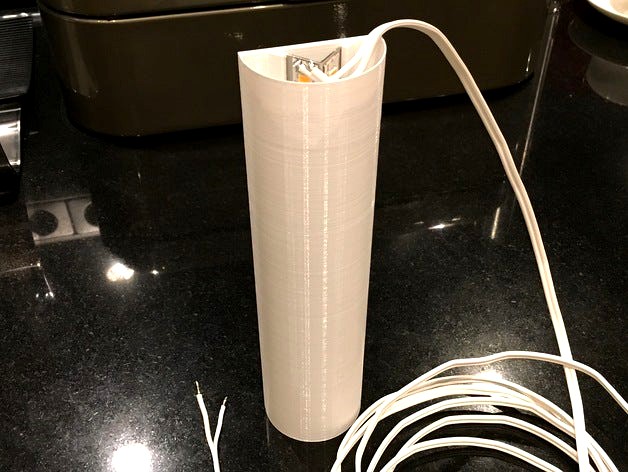

Very simple bathroom mirror lamp. Optimized for 0.4mm nozzle. Use bright white material, like ColorFabb nGen polyester material, very white and shining through if printed in thin.
Lamp is fixed to the mirror with Tesa Powerstrips top and bottom.
Two LED strips à 20cm with High CRI of 90-95 and 15W/m (minimum brightness in my opinion) are mounted on a 15mm x 15mm x 1mm aluminium profile that simply slides into the holding rails in the lamp. No screws required.
Walls are 0.4mm only = one perimeter. Pay attention with your slicer that this is rendered correctly, you might have to play with the parameters.
Designed with ViaCad, source file included.
