Ball End Carriage 48mm by brood2540

Last crawled date: 4 years, 4 months ago

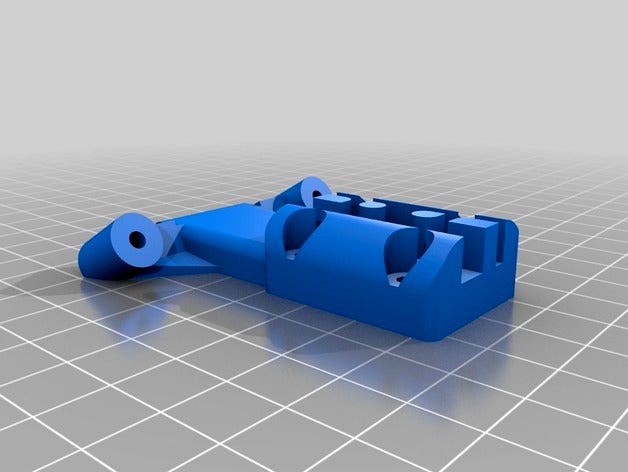

This carriage was inspired by the Hammerhead Delta Carriage, but I needed a carriage with 48 mm spacing. The holes are aligned to a MGN12H linear rail carriage. The holes for the steel balls are designed for M3 threads and the back side holds a M3 nut. The balls are also angled down steeper for using longer rods.
Edit 7-6-17 Added 45mm spacing version.
