AV Receiver tripod mount by movotrab
by Thingiverse
Last crawled date: 5 years ago

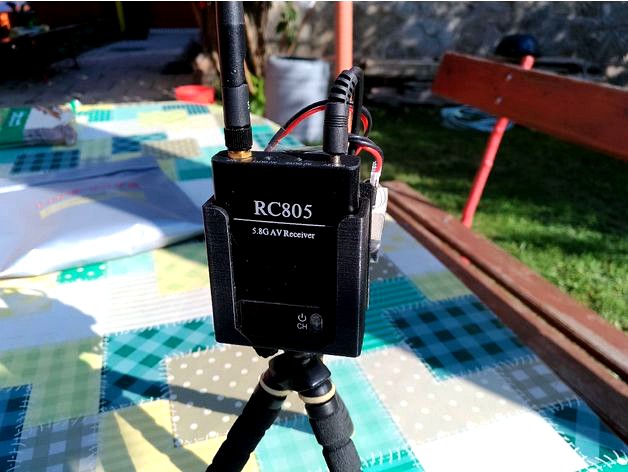

This is a simple tripod mount for Boscam AV Receivers. On the back side a battery can be secured in placed by a strap together with a voltage checker.
Materials needed:
5 flat head wood screws, 3x13mm
The whole mount is composed of three parts that are held together by 5 wood screws. To avoid cracking, all holes should be drilled out first with a 2.5mm drill.
The battery can be attached in vertical or horizontal positions by placing the strap accordingly. It is also possible to omit the back plate by simply mounting the battery vertically on the (revered) middle tripod mount part.
Materials needed:
5 flat head wood screws, 3x13mm
The whole mount is composed of three parts that are held together by 5 wood screws. To avoid cracking, all holes should be drilled out first with a 2.5mm drill.
The battery can be attached in vertical or horizontal positions by placing the strap accordingly. It is also possible to omit the back plate by simply mounting the battery vertically on the (revered) middle tripod mount part.
