Auto-levelling Mount
by Thingiverse
Last crawled date: 6 years, 4 months ago

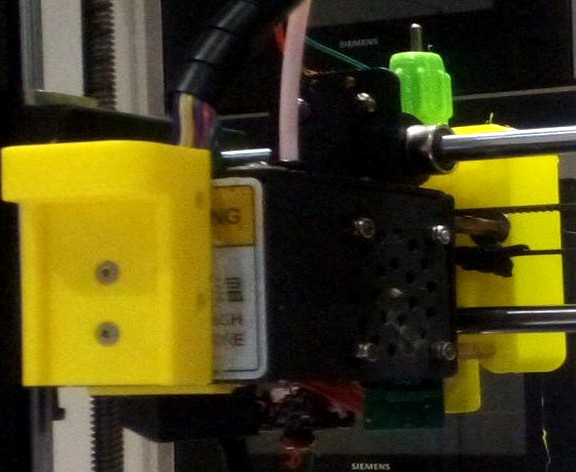

This is a mount for an IR levelling sensor, designed for the AnyCubic I3 Mega printer. With appropriate modifications this mount should work with other 3D printers.
The sensor itself mounts to within 3mm from the build surface.
This design is mounted on 4x 35mm M3 standoffs on the rear of the printer head. Its 2 piece design allows the sensor to be raised and lowered via an M3 threaded shaft (typically a 70mm M3 bolt), using a thumbscrew which pulls against a compression spring.
Also required:
2x M3 Rivnut - for thumbscrew and vertical shaft
4x 30mm M3 bolts + washers
Requires IR sensor http://www.escher3d.com/pages/order/products/product1.php
