ATX Bench Power Supply
by Thingiverse
Last crawled date: 6 years, 2 months ago
This is very much a WIP remix...
Changed the size of the holes to accommodate individual 4mm banana plug sockets

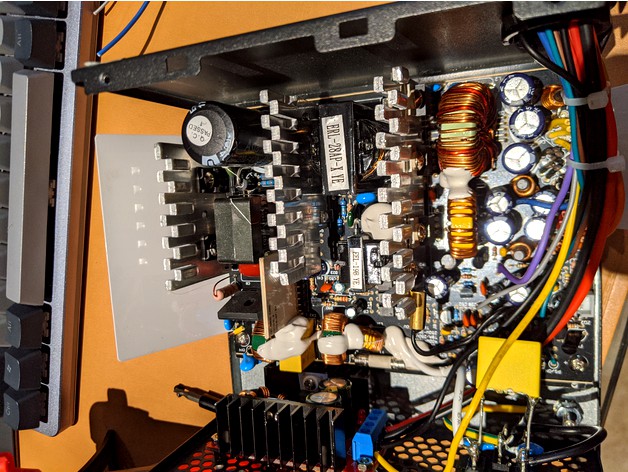

Wanted to have up to 30v @ 150w so crammed the buck boost into the ATX power supply case and wired that to the DPS 5005
BOM:
DPS5005
4mm Banana Plug Socket
Switches
DC Buck Boost 150w
Old ATX Power Supply
Upgrade DPS 5005 to OpenDPS
Now that it's all working as expected, next is to update the DPS
ATX Power pin out
