ATtiny Programmer Housing 1.3 by Zaibach
by Thingiverse
Last crawled date: 4 years, 7 months ago
!!!!!////////////////////////////////// OUT OF DATE ////////////////////////////////////// !!!!!
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Since This was Published Sparkfun has retired the PGM-11460 Programmer that this
was originally designed to work with and replaced it with the PGM-11801. Which adds
an extra solder pad to the end of the board which causes the solder joints on the DIP
to not align with the recess in the design.
I'm going to leave this here for anyone who has the PGM-11406 which should work and
for anyone who might want to remix it to be compatible with the new board design. Again
This is not compatible with the new revision of the programmer available from Sparkfun.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

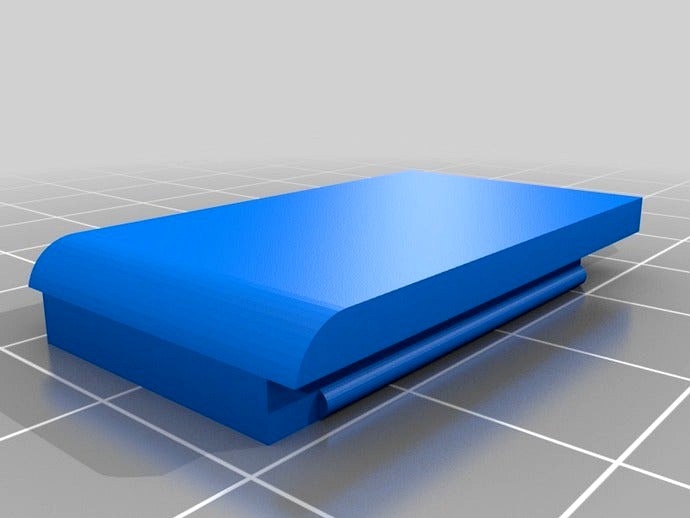

Housing for the Sparkfun Tiny AVR Programmer.
Fair Warning I am still using 1.2 and have yet to print a 1.3. The only changes between the two was the notch to secure the two halves was too close to the upper layer of the lower housing.
So for 1.3 the lower housing walls were raised slightly adding more structure above the notch and the top was adjusted accordingly.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
