Atari 520 ST Video Adapter Case and PCB - VGA by gauthierlerouzic
by Thingiverse
Last crawled date: 4 years, 8 months ago
https://nozzler.fr

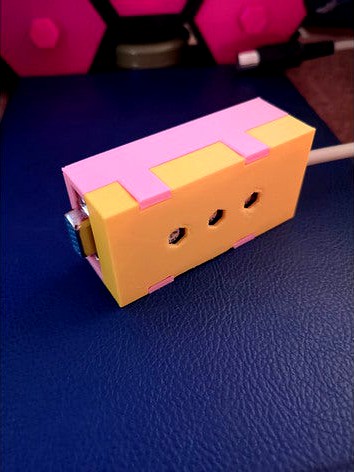

It's a case and a schematic drawing for an video and sound adapter for an Atari 520ST.
The PCB is a 3x7cm.
You can see pictures about mine, and find drawings about electronic part and soldering.
I do one without sound adapter.
You can find the sketchup file, to update the case with your PCB size.
Next update will be with one, probably Jack 3.5.
