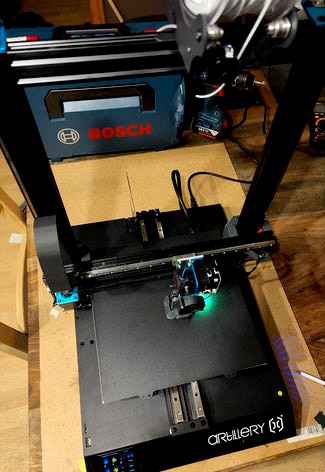

Artillery Sidewinder X1 Y axis mgn12 linear rails by kse
by Thingiverse
Last crawled date: 4 years, 8 months ago
DXF file of a new Y-axis table to get rid of those annoying v slot guides.
you need to laser cut or cnc mill the dxf file out of 4mm aluminum
You also need 2x MGN12 rails with 450mm length and mgn12h carriage, 12 t-slot nuts with m3 thread for 2020 profiles, and 12 m3x8 din912 screws.
you need to laser cut or cnc mill the dxf file out of 4mm aluminum
You also need 2x MGN12 rails with 450mm length and mgn12h carriage, 12 t-slot nuts with m3 thread for 2020 profiles, and 12 m3x8 din912 screws.
