Artillery Sidewinder X1 V4 - X-Axis Cover by LMprod
by Thingiverse
Last crawled date: 4 years, 8 months ago
A cover for the Left X axis on the Sidewinder X1 - V4. This cover permit also to hold and fix the cable to avoid burning it.
And a simple plate for the opposite side.
Needed :
Thread the central hole of X profile in size M5 on both profile end.(visible on photos)
Tow Screw M6 x 20mm (cylindrical head)
Two Screw M3 x 10mm (countersunk head)
Two Nut M3
The left cover is available in 2 versions:

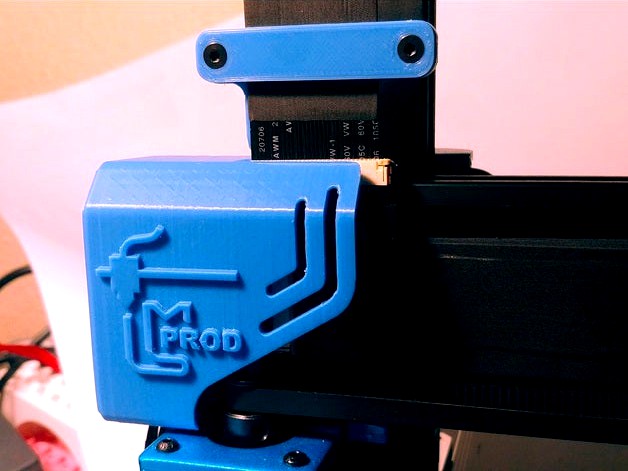

X-Z_Cover.stl is the one on photos with my "ML Prod" label on it.
X-Z_Cover_ART.stl same one but withe the Artillery logo instead of "ML Prod".
Enjoy !
