Artillery Sidewinder X1 Pen Mount by s7raysoul
by Thingiverse
Last crawled date: 4 years, 8 months ago

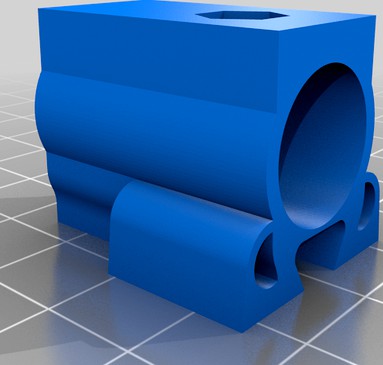

Pen mount for Artillery Sidewinder X1 (I remixed the Helioxlab file)
Outside of the STL you will need:
2 M3x20mm screws
1 screw M5x20mm
1 nut M5
1 elastic
Once everything is mounted, adjust your tray with the mounted pen leaving a margin with the nozzle to prevent it from touching your sheet.
Then you will need your image to be in .svg, there are several format converters on the internet.
once your image is in .svg, you will need to convert it to .stl.
For that I use Tinkercad, but other programs also do the trick.
Once the .stl file is in your possession, open your slicer and do as for standard 3D printing. Don't forget to turn off the temperature of the nozzle and your tray.
I advise putting at least 2mm of vertical retraction elevation to avoid unwanted lines on the drawing.
