Artillery Sidewinder X1 - BTT TFT 3.5 v3.0 Mount
by Thingiverse
Last crawled date: 5 years, 7 months ago

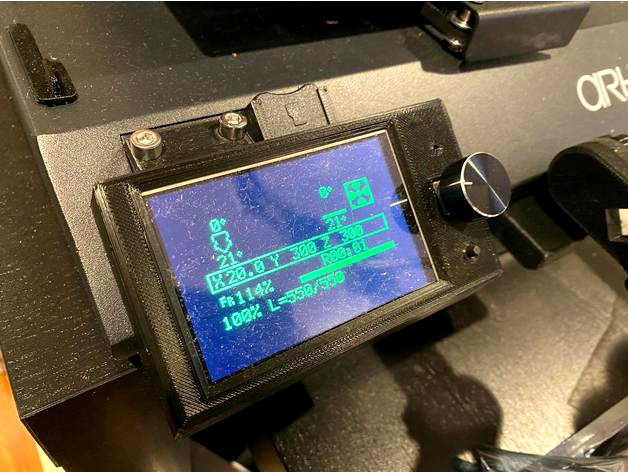

This mount is used for the Bigtreetech TFT 3.5 v3.0 onto the Artillery Sidewinder X1. I used this in conjunction with the SKR v1.4. Should work with the v1.3 as well. The base reuses the screws from the original stock TFT mount.
You will also need:
2 - M5 screws (min 8mm)
1 - Micro SD TF Flex extension (I used this one: https://www.amazon.com/gp/product/B01D9J8KQE/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)
4 - M3 x 6 screws for the mounting of the TFT onto the case
Just plug the three cables from the printer mainboard onto the TFT as well as plug the SD extension into the mainboard SD slot using the flex extension cable. You should be good to go.
You will also need:
2 - M5 screws (min 8mm)
1 - Micro SD TF Flex extension (I used this one: https://www.amazon.com/gp/product/B01D9J8KQE/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1)
4 - M3 x 6 screws for the mounting of the TFT onto the case
Just plug the three cables from the printer mainboard onto the TFT as well as plug the SD extension into the mainboard SD slot using the flex extension cable. You should be good to go.
