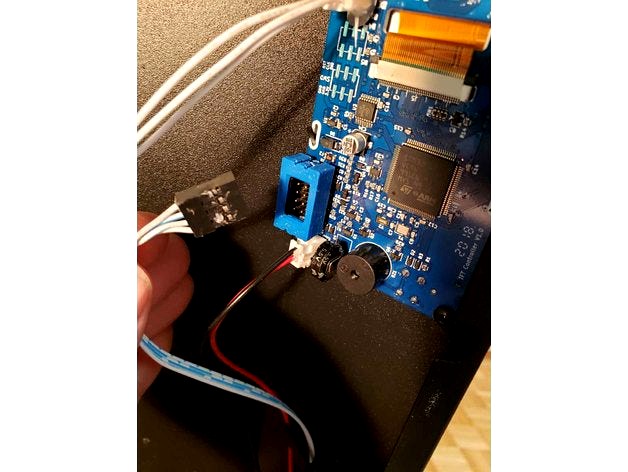

Been a year now and upgraded my Sidewinder with custom probe. First time opening cabinet to disconnect the TFT screen in order to load firmware. While I made half a dozen uploads, I got nervous about plugging the TFT back into the connector as the connector is much wider than the plug and it seems you could plug in only 6 of 8 pins in wrong holes. This is a simple snap on piece to the connector with beveled lead in and automatically aligns the pins properly. The only thing it doesn't solve is if the plug is rotated 180°. Typically the wires have memory which makes it difficult to twist plug enough to make that mistake.
I printed the part upside down with the surface having the plug opening on the bed. I didn't use supports. I only made the one print and one snap did break due to layer direction. I put a spot of solvent bond (ABS) on it to glue it back on in place. Anyone who has opened up Sidewinder has seen the factory go nuts with hot glue, which is also an option if your snaps. (In fact there was a good 15-20 minutes to remove what was there).
Take a look at my other sidewinder X1 upgrades:
