Artillery Genius BLTouch mount by DenKlie
by Thingiverse
Last crawled date: 4 years, 3 months ago
So, my problem with the already existing mounts is that most of them require a new Fan duct, since the mount is placed behind the Fan itself and the old duct is now to far away and reduced its performence.

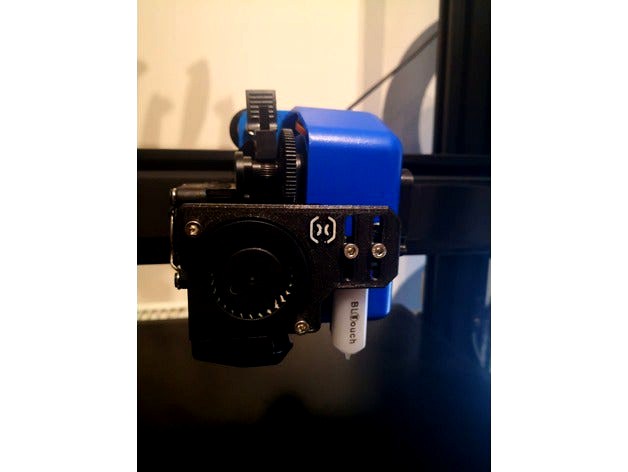

The design is insted mounted ontop of the Fan, using the space given there. With a thin spacer it gives the perfect amount of space to hide the BLTouch between the main Cover and the mount, giving it extra style points ^^
What you need and most likely can't print:
4x M3 Nuts
2x M3 x 22mm Screws (I took 25mm and cut them to lenght)
2x M3 x 8mm Screws
2x M3 x 10mm Screws (or 18mm for BLT with springs)
The Cable fits nicely inside and between the cover
