Articulating LED Lamp for MR16 by lindsaytcrawford
by Thingiverse
Last crawled date: 4 years, 1 month ago

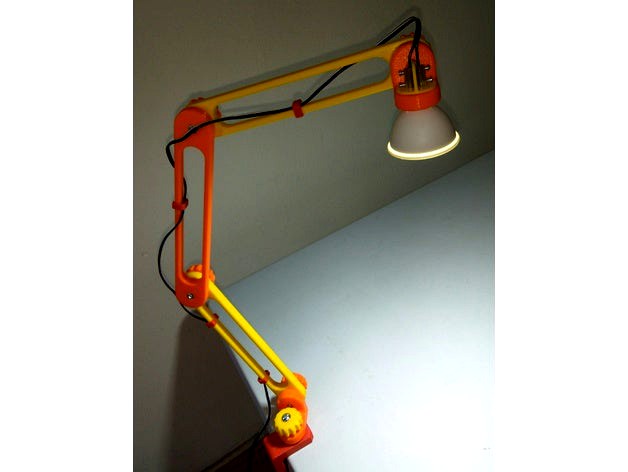

This is a small remix of the extremely useful Articulating LED Lamp uploaded by Kanata.
I didn't want to use or assemble a full LED panel, but rather use a 12V MR16 LED.
So I remixed the Clamp_Swivel_Assembly part to have a hole to take the MR16. I also created a new part to go behind and hold the MR16 in place once the wires are connected using the insides of a connector block.
I don't have a suitable spring yet so I've included a washer that I'm using for now instead. I also couldn't find the 4mm hex-head bolt for the knobs, so I used a normal star-head bold and screwed a nut all the way up against it in order to lock into the knob.
Please look at Kanata's Articulating LED Lamp for all the rest of the parts (you will still need most of the parts that don't have LED in the file name).
