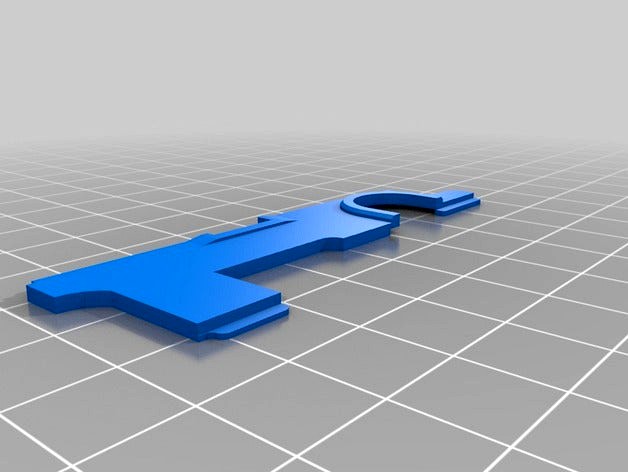

ARES XM110 fire selector for V2 by Tiktiki
by Thingiverse
Last crawled date: 4 years, 7 months ago
WORK IN PROGRESS! WILL UPDATED ONCE PRINTED AND TESTED!
UPDATE 24/09/2016
Printed a few iterations, tuned fitting and engagement.
The current version should be good to go.
Last version works fine, but mechanical safety was not positive.
Enlarged the section that interacts with the safety.
Modified selector plate for use with a STANDARD V2 Mechbox (M4-rear type).
Modified the position of the cut to fit the ARES XM110 selector position.
Added clearance for 8mm bearings.
Added material to removed electrical safety.
