Arduino Uno/WeMos D1 Project box with LCD cutout by Hawk399
by Thingiverse
Last crawled date: 5 years ago

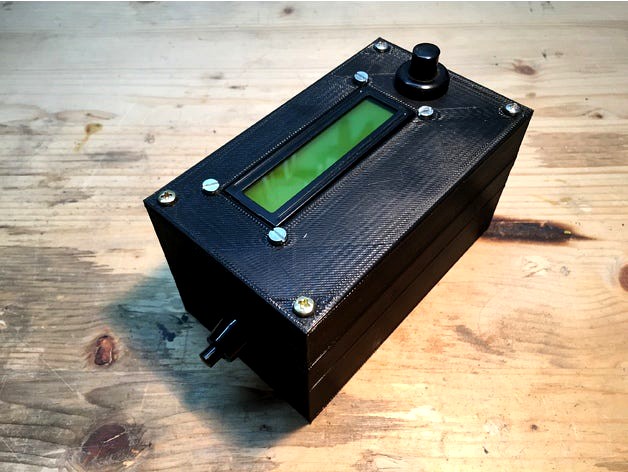

This Box can contain a Arduino Uno sized board and a 1604-LCD. On the bottom of the box there are standoffs onto which the board can be screwed with small screws that bite into the plastic. Also the top lid is screwed onto the box like this. In the corner of the box there are holes.
In the lid there is space for a 1602 Style LCD.
I used the box for a small electronics project in which the WeMos D1 calls web API for a quote of Ron Swanson from the great TV series "Parc's and Recreation".
You can also download and modify the Fusion360 file.
If you would like to see the project I made with this box, check out my blob post: https://steemit.com/steemmakers/@hawk399/the-ron-swanson-quote-box-get-some-wisdom-from-this-small-iot-device
Note: The holes for the two switches were drilled after printing!
