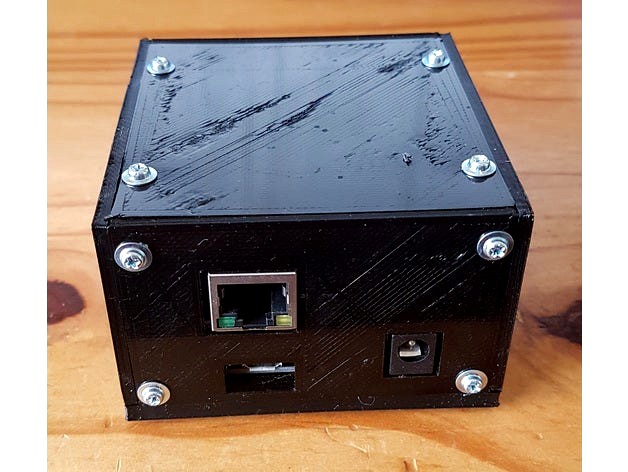

Arduino Uno case (with Ethernet shield and extension board) by RGN01
by Thingiverse
Last crawled date: 4 years, 8 months ago
This case was designed to house an Arduino Uno with Ethernet shield and an extension board for a temperature logger to provide temperature monitoring to Thingspeak.
It is modular so is easy to assemble and the sides can be redesigned to adjust to different boards etc.
Notes:
It uses M2.5 x 10 machine screws and nuts to hold it all together. Those shown on the photos are flanged head versions, I normally use cap screws.
My printer was having some issues with the budget PLA used so the finish of the parts is not that great!
the left and right sides are interchangeable so you can use two of either if you wish.
two fronts are supplied, one has a side cutout for a cable.
