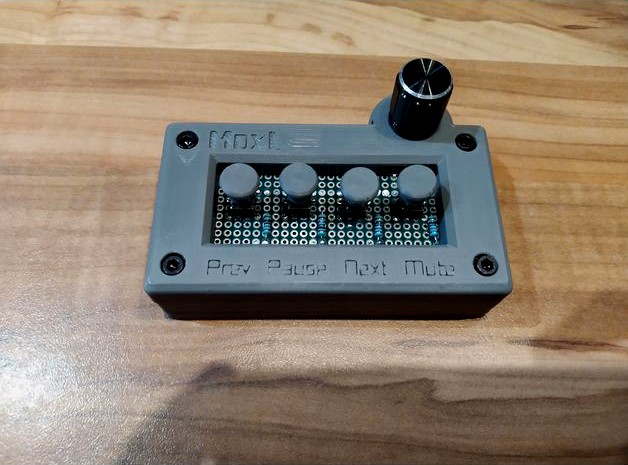

Arduino Pro Micro Media Control by moxl
by Thingiverse
Last crawled date: 4 years, 8 months ago
Arduino Pro Micro Volume controller. For Windows
(5v version)
Acts as a second keyboard which is programmable for media control Including volume for under 10€/$
Check my Github for the code:
https://github.com/moxl-420/USB-Arduino-Media-Controller
Items needed:
1x Arduino Pro Micro 5v
1x Breadboard 3cmX7cm
4x 10Kohm resistors
4x High profile tactile button.
1x 10K Potentiometer.
7x M3 10mm nut and bolt
Printing:
Printed in Sunlu PLA+
220C nozzle 0.4mm @ 0.2 resolution
60C Bed (PEI bed for smooth)
'Concentric' top/bottom layer, rest of layers 'lines'
Tips for fitting
See Pictures for breadboard placement.
Superglue the nuts in the center layer before final assembly.
