Arduino Nano - DIN Mount Plate by gandalf101
by Thingiverse
Last crawled date: 4 years, 8 months ago

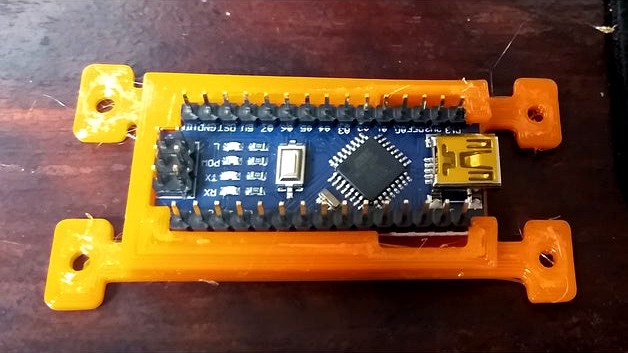

DIN Rail mount for an Arduino Nano.
Designed to be used withhttps://www.thingiverse.com/thing:1393685
Build List
1 x Arduino Nano
2 x thing:1393685
1 x DIN Rail Mount
Usage
For best usage, solder the headers for the Nano facing "up". Carefully maneuver the two
arms outward and slide the nano into the slot allocated. It should be retained by the arms
and the two little blocks on the inside cutout.
