Arduino Mega 2560 and Due adapter plate for Prusa i3 Improved laser cut frame + VIDEO by FDMTech
by Thingiverse
Last crawled date: 4 years, 7 months ago
Basically the holes on the left wing of the Prusa i3 Improved for laser cut do not match up with the Arduino Mega 2560 and Arduino Due.
Right now I only use the upper most right hole to mount my Arduino Due and RAMPS-FD shield.
I took measurement on my own frame and from the .DXF file of the frame and they match up. Then I found the measurements on a blog for the holes of the Arduino Mega / Due.

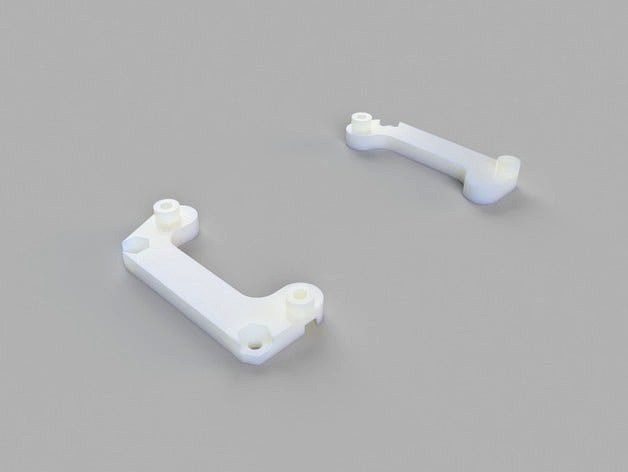

In Fusion 360 I made a sketch of the hole locations and drew lines around them to make a body. Afterwards I decided to save on print time and filament by splitting the body into upper and lower mounts.
You are free too download and modify. Get the source from Autodesk Gallery.
Using Netfabb Standard I checked the STL files for problems. Glad to say there aren't any. :)
Requires M3 hardware (7 bolts, 7 nuts and washers), preferably stainless steel, otherwise it should be fine too.
Subcribe to my youtube. You can see this thing getting printed here.with a little bit of a Fusion 360 peek ;).
